Unitas 6426
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1934
Diameter: 23.3 mm
Height: 4.3 mm
Hands: 1.20 x 0.80 / 0.20 mm

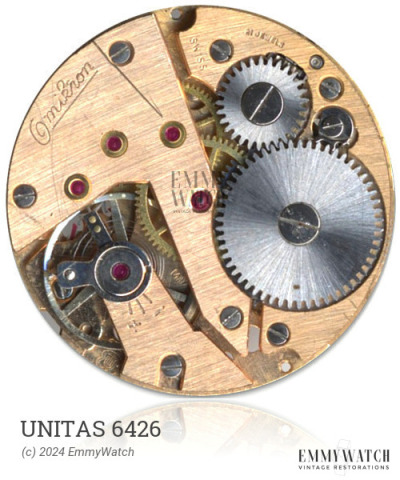

The Unitas 6426 is a mechanical watch movement introduced around 1934. It is a manual wind movement with a sub-second function. The specific differences between the Unitas 6426 and its counterparts, the 294, 297, and 313, are not known.
The Unitas 6426 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.095 x 320 x 9.0 mm | GR4477 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
