Unitas 6366
Ligne: 10.5'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Height: 4.0 mm
Hands: 1.22 x 0.80 / 0.18 mm

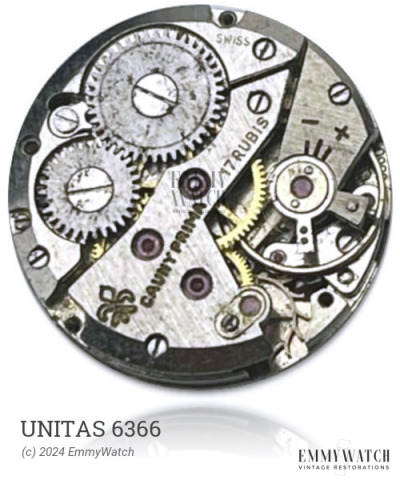

The Unitas 6366 watch movement is a manual wind, sub second mechanical movement. It falls within the range of catalog numbers 100 through 109 and exhibits differences in bridge- and plate details with varying variations not specified between numbers 70 through 85, 87 through 89. No further information is available about the specific characteristics of this movement.
The Unitas 6366 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 260 x 8.0 mm | GR3696 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
