Unitas 6300N
Ligne: 18.5'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 41.65 mm
Height: 4.7 mm
Hands: 2.00 x 1.15 / 0.26 mm

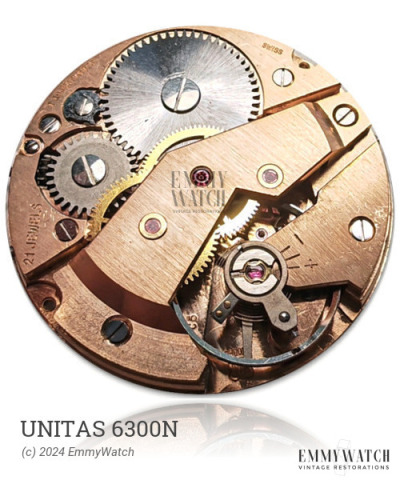

The Unitas 6300N watch movement is a hunter calibre with various options, including a Breguet hairspring and a bimetallic screw balance. It features a Reed's regulator, an aluminium lever, and -escape wheel. The movement showcases varying bridge shapes, potentially indicating different versions. Additionally, it is likely equipped with a left-handed ratchet-wheel screw. The differences between the 362, 382, 386, 404, and 410 are unknown, but it is likely that these are just catalog designations denoting varying bridge shapes. The Unitas 6300N movement offers functions such as stem winding and setting, as well as a sub-second display.
The Unitas 6300N features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.200 x 475 x 16.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
