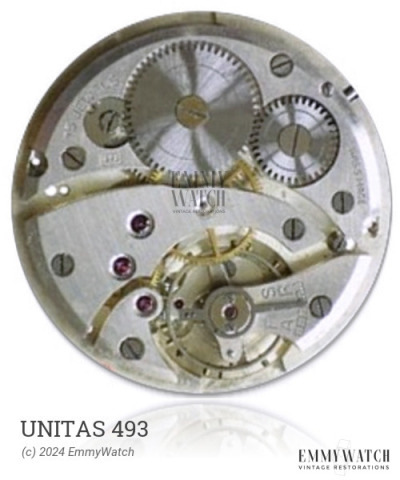

Unitas 493
Ligne: 6.75'''
Jewels: 17/19
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 15.55 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 mm
The Unitas 493 is a mechanical watch movement that features an early fixed or later mobile stud carrier. Its indirectly driven minute hand allows for a very large balance. The differences between the 2410 and 2415 models are unspecified. This movement is primarily designed for manual winding.
The Unitas 493 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.070 x 210 x 6.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.075 x 200 x 6.0 mm | GR3588 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
