Unitas 384
Ligne: 13'''
Jewels: 17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 29.4 mm
Height: 4.55 mm
Hands: 1.50 x 0.90 mm

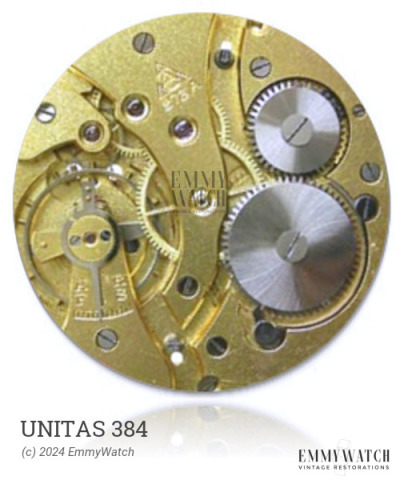

The Unitas 384 is a manual wind watch movement that features a sweep second function. Originating from Germany, it is also known as the Wehrmachtswerk or the Germany Military Movement. The specific differences between the 6300 through 6302 variations are currently unknown. This movement was commonly used during the period of approximately 1965.
The Unitas 384 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.140 x 360 x 12.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X10 | 400/12 | 111.10/INCA #9 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| SCREW, INCA 18X50 | 400/2 | 150.11/INCA #14 | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| SHOCK UNIT COMPLETE, LOWER | 400/33 | 100.20.10 | Buy part |
| UPPER SETTING D360 H10 | 400/1490 | 100.21.360.10 | Buy part |
