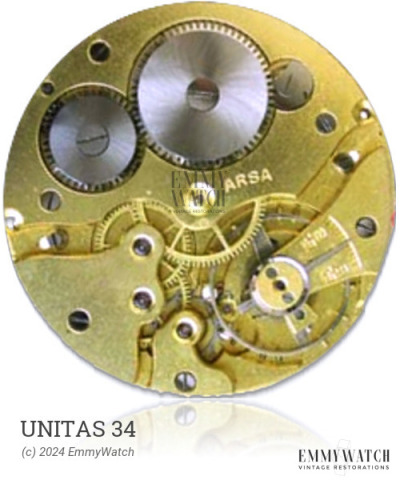

Unitas 34
Ligne: 13'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.33 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
Base: A Michel 399
The Unitas 34 is a manual wind watch movement that features a sub second function. It was commonly used around the year 1955. The origins of the ebauches used in the movement are uncertain, and it is unknown whether they were produced by AM or Felsa.
The Unitas 34 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.120 x 360 x 10.5 mm | GR4937 | Manual | Buy mainspring |
| 1.70 x 0.120 x 340 x 10.5 mm | GR4936 | Manual | Buy mainspring |
| 1.70 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
