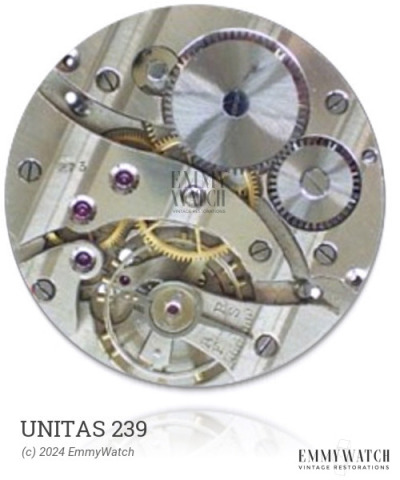

Unitas 239
Ligne: 13'''
Jewels: 15
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 29.6 mm
Height: 4.75 mm
Hands: 1.50 x 0.73 / 0.20 mm
The Unitas 239 watch movement, previously known as Fleurier 13''', has been updated with new designations EF 30, 33, 35, and 39. The differences between the Fleurier 13''' and its updated versions, FEF 30, 33, 35, and 39, are currently undisclosed. This movement offers manual winding functionality, features a sub-second hand, and was predominantly used around the 1930s.
The Unitas 239 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 935 | Ordinary/None | Buy staff |
| 951 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.120 x 360 x 10.5 mm | GR5540 | Manual | Buy mainspring |
| 1.50 x 0.130 x 320 x 10.5 mm | GR4196 | Manual | Buy mainspring |
| 1.50 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
