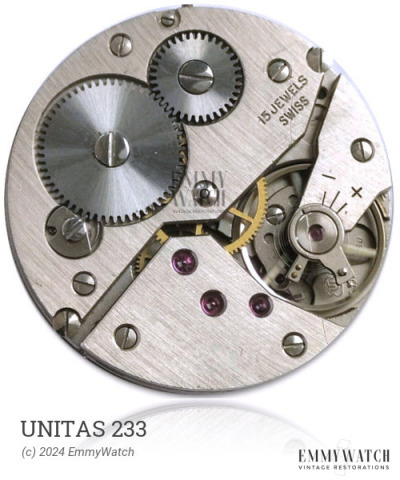

Unitas 233
Ligne: 11.5'''
Jewels: 15
Lift Angle: 52°
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 25.6 mm
Height: 3.55 mm
Hands: 1.30 x 0.60 / 0.21 mm
Base: Fleurier 290
The Unitas 233 watch movement is a manual wind movement with sub-second functionality. It belongs to a series of movements, numbered 310 through 329, with unknown differences among them. The movement is available in both sweep seconds and non-sweep seconds variations. It was commonly used in watches around the period of 1945.
The Unitas 233 features the following functions:
- Manual Winding
- Sub Second
- Sweep seconds and non-sweep seconds variations
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 340 x 9.5 mm | GR4124 | Manual | Buy mainspring |
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
