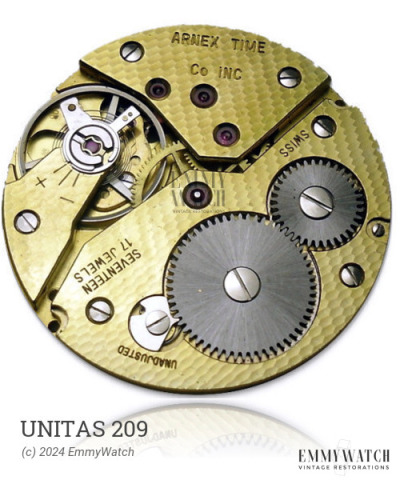

Unitas 209
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 4.2 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Unitas 209 watch movement is a manual wind mechanical movement featuring a sub-second function and a pin-lever escapement. It utilizes a ratchet on the dial side and a crown mechanism with a rocker bar. This movement was commonly used around 1965.
The Unitas 209 features the following functions:
- Manual Winding
- Pin lever
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.85 x 0.105 x 280 x 9.0 mm | GR5463 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE FRICTION | 721/61 | 793/BET 1197 | Buy part |
| BALANCE COMPLETE, KIF | 721/62 | 793/BET 1197N | Buy part |
| BARREL | 182/49 | /BET 1197 | Buy part |
| MAINSPRING 1.80-.10-292 | MS-911K | Buy part | |
| PALLET FORK & ARBOR | 710/1120 | 797/BET 1197N | Buy part |
| ROLLER 180X100X36 | 82S/197R | /BET 8023 | Buy part |
| STAFF, DOUBLE HUB | 100/879 | Buy part | |
| STAFF, FRICTION | 100/144 | Buy part | |
| STAFF, INCA | 100/956 | Buy part | |
| STEM, FEMALE | 360/20 | 360/BET 1197 | Buy part |
| STEM, T6 | 200/59F | Buy part | |
| STEM,T10-SQ TOO SMALL | 200/142F | Buy part |
