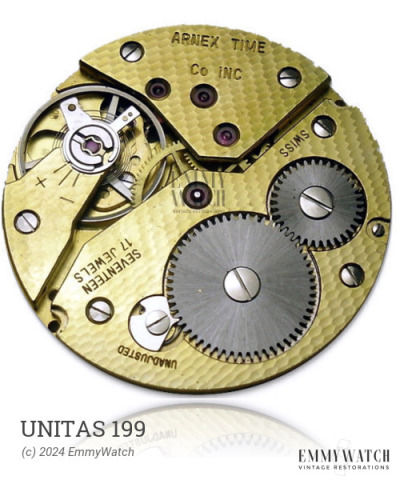

Unitas 199
Ligne: 8.75 x 12'''
Jewels: 15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Size: 19.1 x 26.4 mm
Height: 3.65 mm
Hands: 1.30 x 0.65 / 0.22 mm
The Unitas 199 is a manual wind watch movement with sub-second function. It belongs to a set of movements, including the 110, 112, 113, and 114, with differences that are not widely known. The Unitas 199 movement was used from approximately 1935.
The Unitas 199 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.115 x 380 x 11.0 mm | GR3718 | Manual | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
