Unitas 168
Ligne: 8 x 9.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 18.5 x 22.1 mm
Height: 4.8 mm
Hands: 1.32 x 0.78 x 0.18 mm

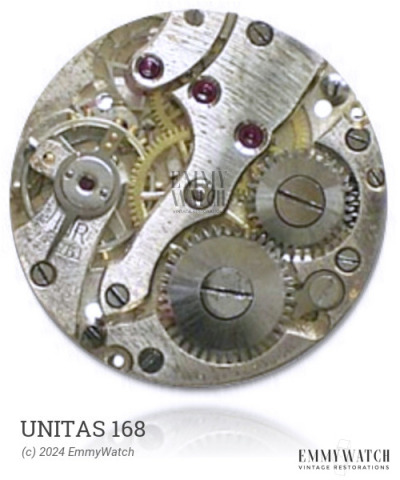

The Unitas 168 watch movement is a manually-wound mechanical movement that features a sweep second function. It is paired with a sweep seconds hand and is believed to have a hand-gear plate that is either absent or thinner in comparison to the 232 movement. The Unitas 168 movement was used in watches produced around the 1950s.
The Unitas 168 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3083 | Ordinary/None | Buy staff |
| 3931 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.090 x 280 x 8.0 mm | GR3220 | Manual | Buy mainspring |
| 1.30 x 0.095 x 260 x 8.0 mm | GR3234 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
