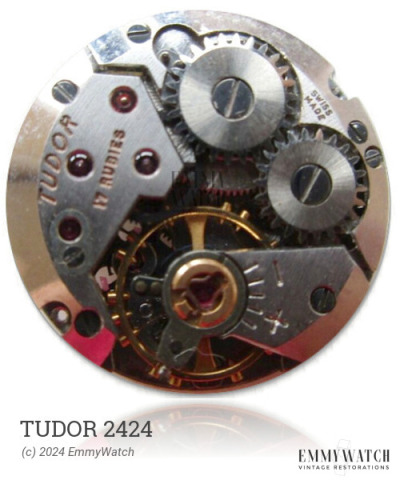

Tudor 2424
Ligne: 21.75'''
Jewels: 17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1890
Diameter: 48.9 mm
Height: 9.9 mm
The Tudor 2424 is a hunter calibre watch movement featuring a bimetallic screw balance and a Breguet hairspring. Its repeater function employs a slide mechanism with two hammers on spiral gongs, along with a hook-lever regulator. This movement has a quarter repeater and a chronograph with a 60-second duration, controlled by a pillar wheel. It can be both stem wound and lever set, and includes a sub-second function. The Tudor 2424 was produced around the year 1890.
The Tudor 2424 features the following functions:
- Quarter repeater / Chronograph, 60s, pillar wheel
- Stem wind and lever set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
