Timex M104
Jewels: 17
Lift Angle: 49°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1963-1966
Diameter: 30.5 mm
Height: 4.05 mm
Hands: 1.40 x 0.75 / 0.19 mm

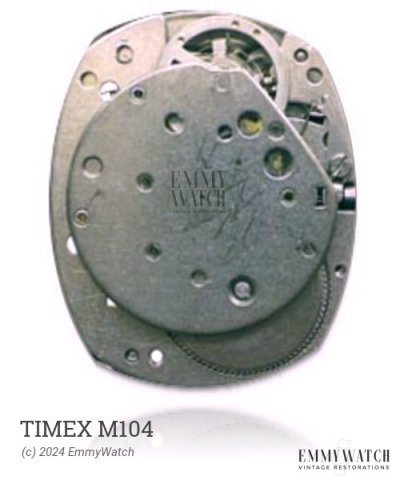

The Timex M104 watch movement is the final version of the Omega 30 movement and was produced between 1963-1966. It features a manual wind mechanism and a sub second function. Additionally, it is equipped with an adjustable Stud Holder system.
The Timex M104 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.125 x 360 x 11.0 mm | GR4186 | Manual | Buy mainspring |
| 1.50 x 0.130 x 340 x 11.0 mm | GR4197 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
