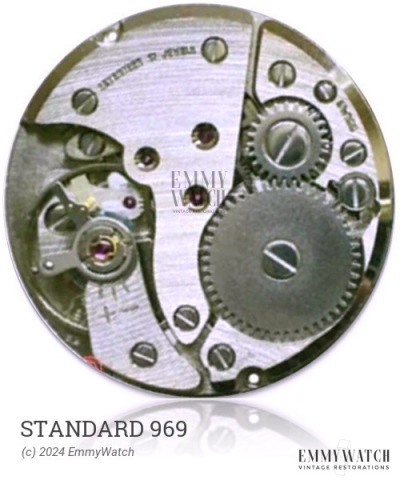

Standard 969
Jewels: 7
Frequency: 18000 vph
Type: Manual Wind
Period used: 1921-1922
Diameter: 27.94 mm
The Standard 969 watch movement, produced between 1921-1922 in a quantity of 2000 units, is an open face calibre with a model 3 design. It features a bimetallic screw balance and a Breguet hairspring. The movement also incorporates a negative stem mechanism. It is similar to the model 3 movement in terms of size, but with a smaller base plate. Detailed differences between the model 3, 5, and 7 are unknown. The functions of the Standard 969 movement include stem winding and setting capabilities, as well as a sub-second display.
The Standard 969 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
