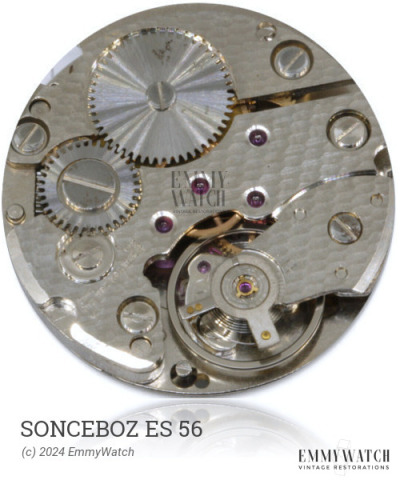

Sonceboz ES 56
Ligne: 8.75'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 19.75 mm
Height: 3.55 mm
Hands: 1.25 x 0.70 / 0.20 mm
The Sonceboz ES 56 is a manual wind mechanical watch movement with a sub-second function. It features a bimetallic screw balance, a stem mechanism without a setting-lever spring, and bridge shapes that may differ from the ones shown in the Ebel 8.75''' model. The differences between the Sonceboz ES 56 and other movements, including the 158, 159, 185, 208, 212, 220, 238, 246, 251, 261, and 277, are not known. The Sonceboz ES 56 movement was commonly used around the period of approximately 1925.
The Sonceboz ES 56 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
