Savoie 83G
(Lorsa)
Ligne: 13.5'''
Jewels: 1/17/21
Lift Angle: 42°
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1975
Diameter: 31.05 mm
Height: 4.6 mm
Hands: 1.80 x 1.30 x 0.20 mm

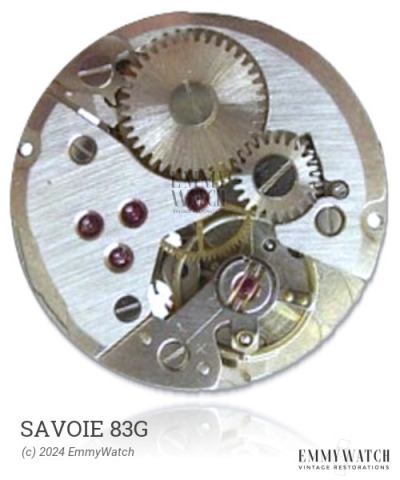

The Savoie 83G watch movement is equipped with a pin-lever escapement and features an indirectly driven minute hand, allowing for a large balance and a low-profile design. Optional shock protection is provided by elastical spiral balance spokes. It is frequently or always identified by the signature "8810". This movement offers several functions, including manual winding, sweep seconds, and a date adjustment that can be made by changing the time from 20:15 to 24:00. The Savoie 83G movement was commonly used during the period around 1975.
The Savoie 83G features the following functions:
- Date: set by changing 20:15-24h
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.135 x 340 x 11.0 mm | GR3518 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
