Savoie 83
(Lorsa)
Ligne: 10.5'''
Jewels: 1/17
Lift Angle: 60°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 23.7 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 mm

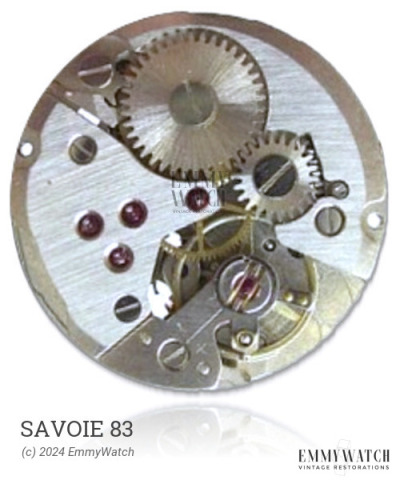

The Savoie 83 watch movement is a manually-wound mechanical movement with a pin-lever escapement. It features an indirect minute hand friction clutch on the barrel. This movement, with its poorly recorded variants, was used primarily around the period of 1970.
The Savoie 83 features the following functions:
- Manual Winding
- Pin lever
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.080 x 240 x 7.0 mm | GR4076 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
