Savoie 514
(Lorsa)
Ligne: 5.75'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 13.25 mm
Height: 3.1 mm
Hands: 0.99 x 0.49 mm

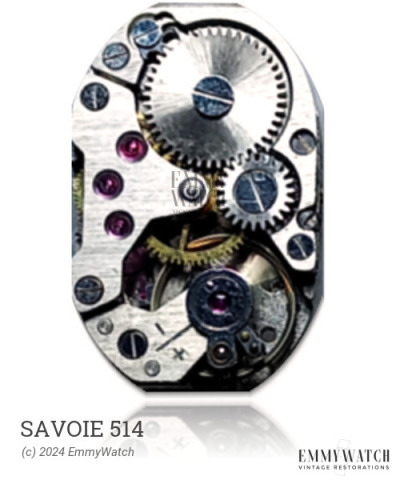

The Savoie 514 watch movement is a manual wind movement with combined settings for the escapement wheel and an indirectly driven minute, allowing for a large balance. It was used in various timepieces created by Doxa, Ebel, Eberhard, Favre-Leuba, Girard-Perregaux, Juvenia, and Zodiac, suggesting it was a joint venture by these brands. Bestfit lists the Savoie 514 and 4036 calibres as equivalent, but their actual producer remains uncertain. The movement was commonly utilized around 1965.
The Savoie 514 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
