Ronda 1211
Ligne: 15.25'''
Jewels: 7/15
Power Reserve: 31 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 34.9 mm
Height: 4.6 mm
Hands: 1.75 x 1.10 / 0.20 mm

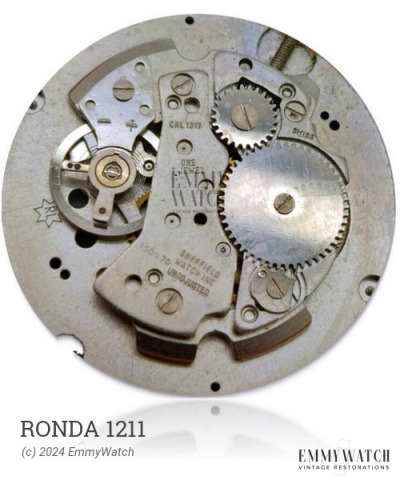

The Ronda 1211 watch movement is an open face calibre with a Breguet hairspring. It features pallets and an impuls pin made of steel, if equipped with 7 jewels. The specific differences between the 7, 570 through 573, 670, and 671 iterations of this movement are currently unknown. There are several other calibres based on the same foundation, with sizes ranging from 15.25''' to 16.5''', but only partial details are currently available. The functions of the Ronda 1211 movement include stem winding and setting, as well as a sub second display.
The Ronda 1211 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.130 x 340 x 11.0 mm | GR4564 | Manual | Buy mainspring |
| 1.45 x 0.160 x 370 x 13.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
