Ronda 113
Ligne: 10.5'''
Jewels: 15
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.3 mm
Height: 3.55 mm
Hands: 1.30 x 0.60 / 0.21 mm

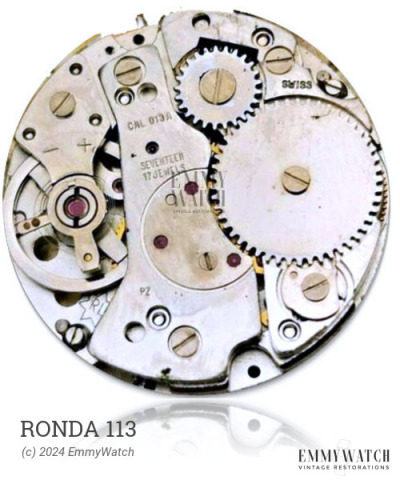

The Ronda 113 watch movement is a manual wind mechanical movement that features a sub second function. It belongs to a series of movements numbered from 290 to 309, but specific differences among these movements are not known. The Ronda 113 movement was produced around the year 1945.
The Ronda 113 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
