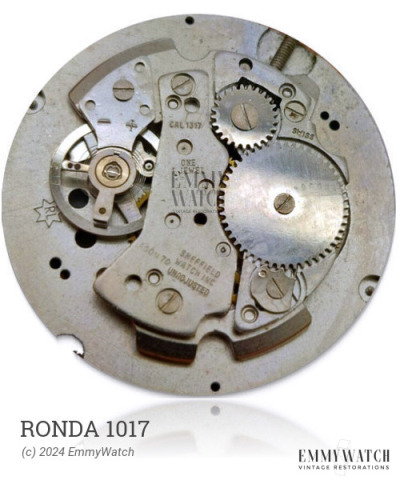

Ronda 1017
Ligne: 19.5'''
Lift Angle: 55°
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 43.6 mm
Height: 6.35 mm
Hands: 2.08 x 0.62 / 0.25 mm
The Ronda 1017 watch movement is an open face calibre with a pin-lever escapement. It features a ratchet on the dial side and a hidden crown mechanism with a rocker bar. The differences between the 146/30 and 146/31 are not known. This movement allows for stem winding and setting, has a sub second function, and was in use around 1965.
The Ronda 1017 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.200 x 460 x 16.0 mm | GR6095 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
