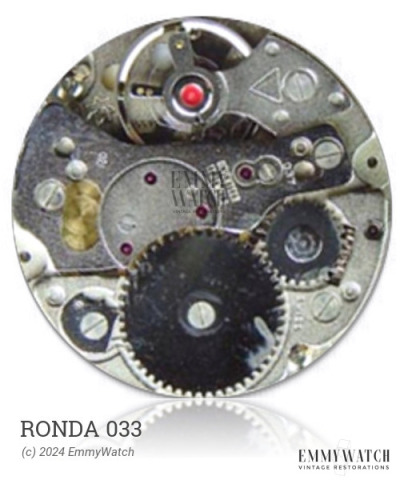

Ronda 033
Jewels: 23
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1958-1963
Size: 19.3 x 23.8 mm
Height: 3.9 mm
Hands: 1.14 x 0.66 / 0.20 mm
The Ronda 033 watch movement is a manual wind movement with sub-seconds functionality. It was produced by Elgin during the period of 1958-1963. It features a flat freesprung hairspring and a DuraBalance regulator, which includes a balance with two regulating weights that can be adjusted simultaneously along spiral-shaped spokes using a regulator lever. The balance settings are combined, and shock protection is provided by the elastical balance spokes.
The Ronda 033 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.120 x 318 x 9.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
| 1.40 x 0.110 x 260 x 8.0 mm | GR3696 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
