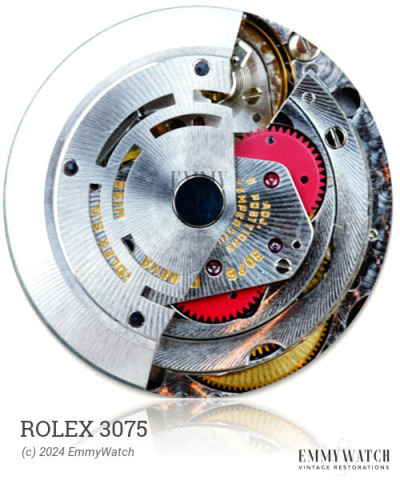

Rolex 3075
Ligne: 11.75'''
Jewels: 25/30/33
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1963-
Diameter: 26.8 mm
Height: 5.3 mm
Hands: 2.00 x 1.50 x 0.90 x 0.20 mm
The Rolex 3075 is a watch movement that was produced from 1963 onwards. It shares similarities with the 1126 movement but features a ball-bearing rotor. This automatic movement is equipped with a 12-hour and 24-hour display, both indicated by center hands. Furthermore, it incorporates a sweep second hand and offers date functionality, which can be set by adjusting the time to 19:30-24h.
The Rolex 3075 features the following functions:
- 12h- and 24h display, center hands
- Automatic Winding
- Date: set by changing 19:30-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
