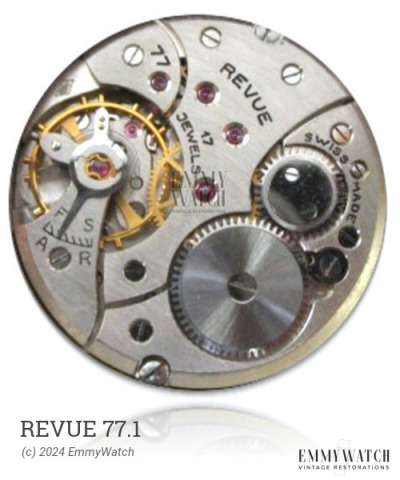

Revue 77.1
Ligne: 16.5'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 4.9 mm
Hands: 2.00 x 1.15 / 0.27 mm
The Revue 77.1 is an open face calibre watch movement with varying bridge shapes. It is likely that the movement features a left-handed ratchet-wheel screw, but the exact differences between the 283, 291, 297, 309, 329, 333, 337, and 499 are not known. This movement incorporates functions such as stem winding and setting, as well as a sub-second hand. It was commonly used during the period around 1940.
The Revue 77.1 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.170 x 460 x 15.0 mm | Manual | Buy mainspring | |
| 1.90 x 0.170 x 460 x 14.0 mm | GR5608 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
