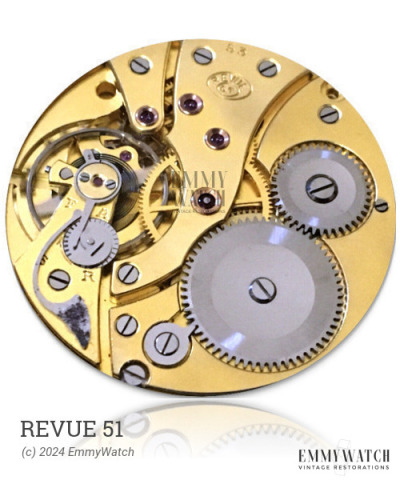

Revue 51
Ligne: 8.75'''
Jewels: 15/17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 19.7 mm
Hands: 1.20 x 0.60 / 0.18 mm
Base: Fontainemelon 63
The Revue 51 is a manual wind watch movement with a sub-second function. It features a date hand that can be set by changing the 20-24 hour marker. This movement was commonly used in watches produced around the 1960s.
The Revue 51 features the following functions:
- Date hand: set by changing 20-24h
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.080 x 280 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

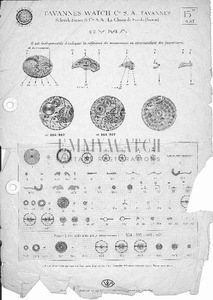

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING, WHITE-A-LOY | 65135 | Buy part | |
| O/S | 357F | Buy part | |
| PALLET ARBOR, 40-90-09 | 72S/80P | 72S/80P | Buy part |
| ROLLER 180X75X36 | 82S/40R | 730/31 | Buy part |
| ROLLER, INCABLOC 180X75X36 | 82S/147R | 730/AS 1649 | Buy part |
| SAMSON MAINSPRING | 6553 | Buy part | |
| STAFF | 100/172 | Buy part | |
| STEM | 200/1409F | Buy part |
