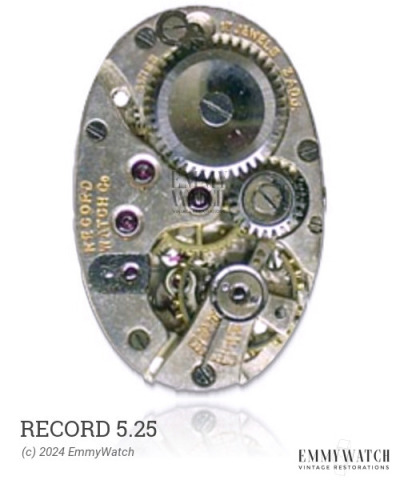

Record 5.25
Ligne: 13'''
Jewels: 17
Lift Angle: 44°
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1952-
Diameter: 29 mm
Height: 4.25 mm
Hands: 1.35 x 0.80 mm
The Record 5.25 watch movement, used between 1952 and an unknown period, shares similarities with the 182 movement, but the specific differences remain undisclosed. This manual wind movement incorporates a sub second function.
The Record 5.25 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.120 x 285 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
