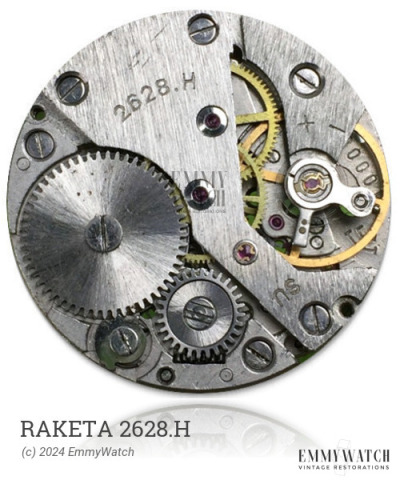

Raketa 2628.H
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Raketa 2628.H is a manual wind watch movement featuring a sub-second function. It is part of a range of A. Schild movements with various bridge layouts and individual designations such as AS 341, 346, 347, 349, 363, 384, 389, 436, 464, 514, 562, 583, 708, 932, and 934. Its period of use is approximately 1936.
The Raketa 2628.H features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
