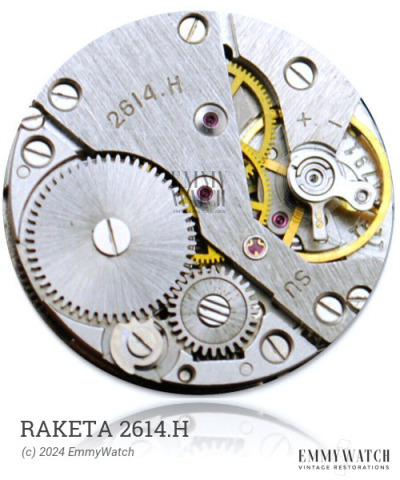

Raketa 2614.H
Ligne: 7.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 17.5 mm
Hands: 1.10 x 0.60 mm
The Raketa 2614.H is a manual wind watch movement that features a quickset date function and an adjustable stud holder. It is designed without a second hand and includes a calendar. The movement was widely used around the 1970s period. The Raketa 2614.H showcases various bridge shapes.
The Raketa 2614.H features the following functions:
- Adjustable Stud Holder
- Calendar
- Date: quickset
- Manual Winding
- Without Second Hand
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1048 | Ordinary/None | Buy staff |
| 5349 | Ordinary/None | Buy staff |
| 5349 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
