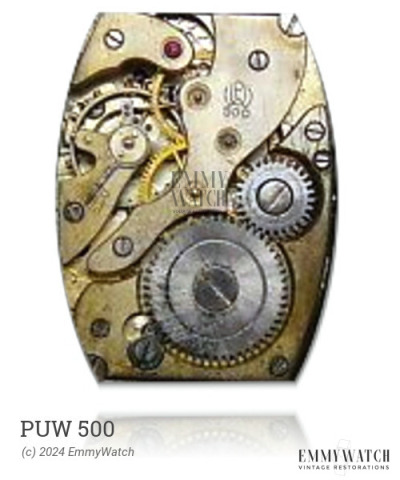

Puw 500
Ligne: 9.75'''
Jewels: 6/15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 21.7 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 mm
The Puw 500 is a mechanical watch movement that features manual winding and a sub-second function. It was commonly used around 1945. Further technical differences distinguishing the Puw 500 from the Felsa 90 and Felsa 186 models are currently unknown.
The Puw 500 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.090 x 250 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
