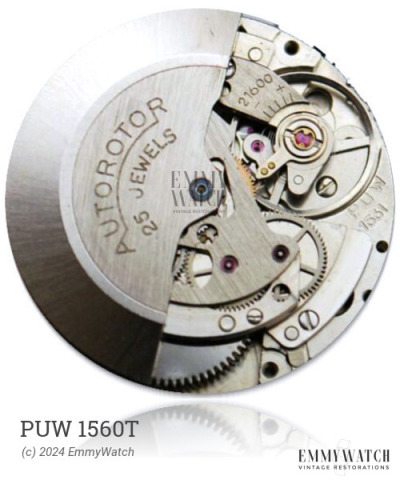

Puw 1560T
Ligne: 11.5'''
Jewels: 25
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Puw 1560T watch movement features an escapement and barrel sourced from Helvetia. This movement is automatic and includes a sweep second function. It allows for the setting of the date by adjusting the 20:40-24h period. Additionally, the movement incorporates a ball-bearing rotor. The Puw 1560T movement was primarily used around the 1970s.
The Puw 1560T features the following functions:
- Automatic Winding
- Ball-bearing Rotor
- Date: set by changing 20:40-24h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
