Puw 1461
Ligne: 13'''
Jewels: 35
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1963-
Diameter: 29.4 mm
Height: 4.6 mm
Hands: 1.52 x 1.00 x 0.18 mm

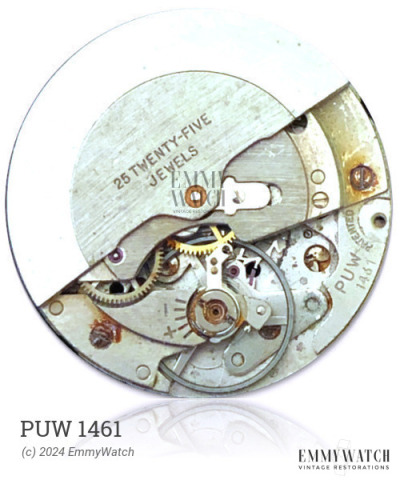

The Puw 1461 is a mechanical watch movement that was in use from 1963 onwards. It features an automatic winding system with a ring rotor rotating on 9 ruby balls. The movement incorporates three plates with useless jewels to secure the fixed inner ring of the rotor bearing. Not much is known about the specific differences between the 0340 and 0341. The 0341 movement includes functions such as automatic winding, a sweep second hand, and has been in use since 1963.
The Puw 1461 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
