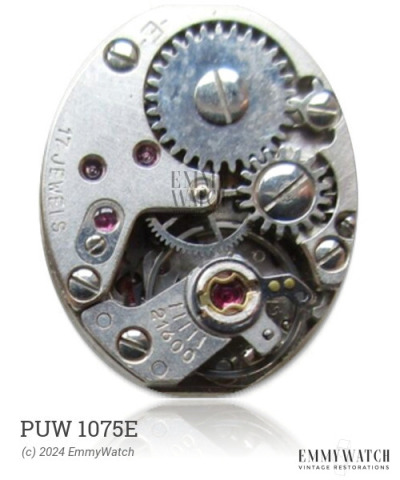

Puw 1075E
Ligne: 6'''
Jewels: 17/22
Power Reserve: 35 hrs
Frequency: 21600 vph
Type: Manual Wind
Diameter: 13.75 mm
Height: 3.15 mm
Hands: 1.00 x 0.50 mm
The Puw 1075E watch movement features an early fixed or later mobile stud carrier design. It is a manual wind, mechanical movement.
The Puw 1075E features the following functions:
- Manual Winding
- Mechanical Movement
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.100 x 220 x 8.0 mm | GR2610 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
