Watch Database
Pierce 110
Ligne: 12.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1945-
Diameter: 28.55 mm
Height: 6.15 mm
Hands: 1.50 x 0.80 x 0.20 mm

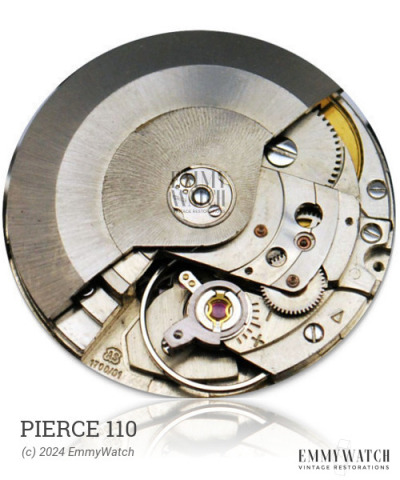

The Pierce 110 watch movement is an automatic (bumper) movement with sweep second functionality. Its period of use ranges from 1945 onwards. The first digits of the serial number are obscured by the train bridge.
The Pierce 110 features the following functions:
- Automatic (bumper)
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 300 x 9.5 mm | GR3254X | Auto | Buy mainspring |
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
