Pierce 103
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 19.7 mm
Height: 3.5 mm
Hands: 1.20 x 0.70 x 0.20 mm

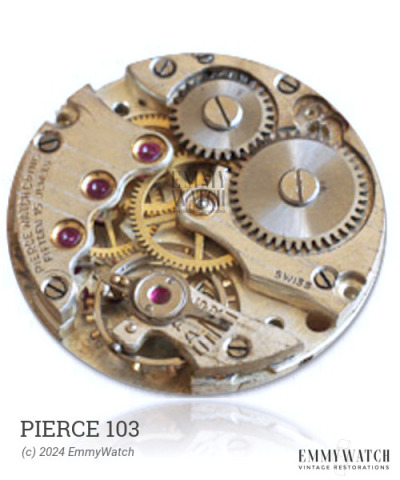

The Pierce 103 is a manual wind watch movement featuring a sweep second function. It includes a date function that is set by changing the 21-24 hour position. The movement also includes an adjustable stud holder for precise regulation. The Pierce 103 movement is equipped with a sweep seconds hand and calendar feature. This movement was predominantly used in watches produced around 1965.
The Pierce 103 features the following functions:
- Adjustable Stud Holder
- Calendar
- Date: set by changing 21-24h
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.090 x 300 x 8.5 mm | GR3629 | Manual | Buy mainspring |
| 1.40 x 0.090 x 286 x 8.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.095 x 280 x 8.0 mm | GR3503 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
