Phenix 785
Ligne: 10.5'''
Jewels: 17
Power Reserve: 53 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.7 mm
Height: 3.95 mm
Hands: 1.50 x 0.80 / 0.21 mm

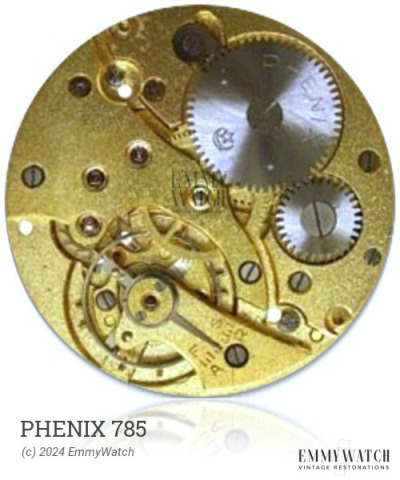

The Phenix 785 is a mechanical watch movement with manual winding and a sub-second function. It belongs to a series of movements, including the 1260, 1262, 1264, 1266, 1268, 1270, 1272, and 1276, with differences that are not known. The Phenix 785 was used during the period around 1955.
The Phenix 785 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.80 x 0.105 x 300 x 9.0 mm | GR5266 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
