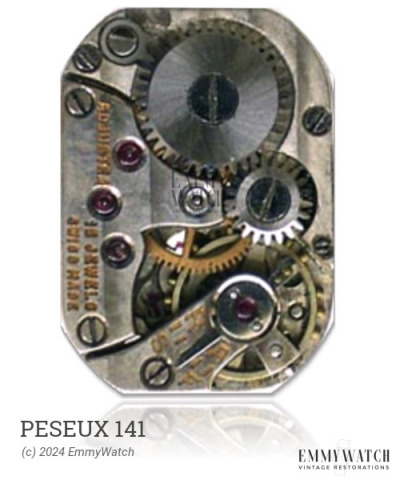

Peseux 141
Ligne: 11.5'''
Jewels: 0/3
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1954-1966
Diameter: 26 mm
Height: 5.55 mm
Hands: 1.41 x 0.79 mm
Base: Diehl 157
The Peseux 141 is a manual wind watch movement that was used from 1954 to 1966. It is a budget version of the Junghans-693 family specifically designed for Diehl watches. The movement features a pin-lever escapement and a ratchet on the dial side. The crown mechanism is equipped with a rocker bar. Additionally, this movement offers the functionality of a date display, which can be set by changing the time from 22:50 to 24h, although no further details are provided regarding this function.
The Peseux 141 features the following functions:
- Date: set by changing 22:50-24h
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
