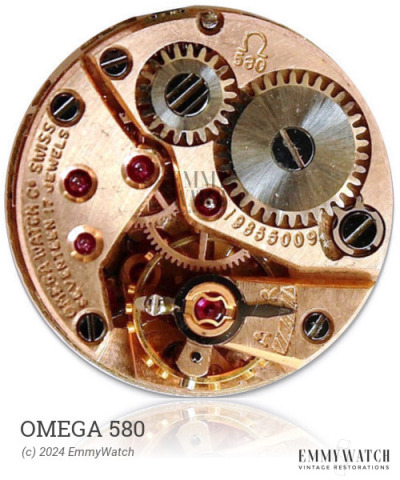

Omega 580
Ligne: 18.5'''
Jewels: 15
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 41.65 mm
Height: 4.7 mm
Hands: 2.00 x 1.15 / 0.26 mm
The Omega 580 watch movement, with its optional Breguet hairspring, exhibits varying bridge shapes and a probably left-handed ratchet-wheel screw. It shares similarities with the 446 and 473 movements, with the differences between them not currently known, indicating possible distinctions based on bridge shapes. The movement offers functions such as stem winding and setting, sub seconds, and is attributed to approximately the period of 1945.
The Omega 580 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2929 | Ordinary/None | Buy staff |
| 4583 | Incabloc | Buy staff |
| 3136 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.00 x 0.200 x 475 x 16.5 mm | Manual | Buy mainspring | |
| 1.90 x 0.210 x 520 x 16.5 mm | GR5676 | Manual | Buy mainspring |
| 1.90 x 0.190 x 500 x 15.5 mm | GR5644 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
