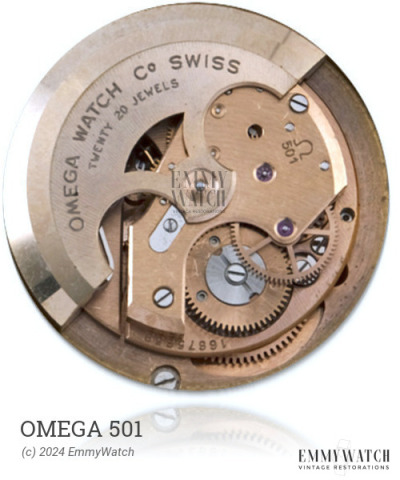

Omega 501
Ligne: 8.75'''
Jewels: 21
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1965
Diameter: 19.4 mm
Height: 5.5 mm
Hands: 1.30 x 0.90 mm
The Omega 501 is a mechanical watch movement that features a pin-lever escapement. This movement incorporates an automatic winding mechanism, a sweep second function, and a date function that can be set by changing the 21-24 hour. Additionally, it includes a calendar and was commonly used around the year 1965.
The Omega 501 features the following functions:
- Automatic Winding
- Calendar
- Date: set by changing 21-24h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.085 x 7.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MALE & FEMALE SPLIT S | 360/504 | /BET 8104 | Buy part |
| PALLET ARBOR | 72S/333P | 714/BET 8100 | Buy part |
| STAFF, INCA | 100/2312 | Buy part | |
| STEM, TAP 6 | 200/1505F | Buy part |
