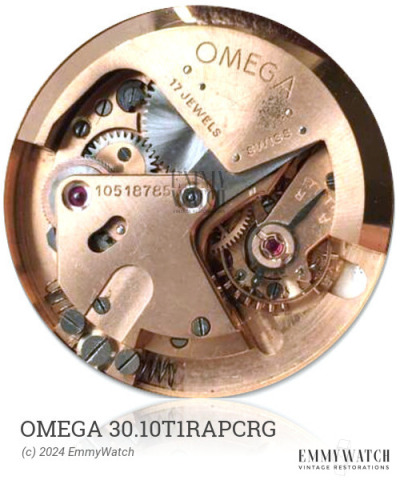

Omega 30.10T1RAPCRG
Ligne: 11.5'''
Jewels: 17/25
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.7 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Omega 30.10T1RAPCRG watch movement is an automatic mechanical movement with a sweep second function. It was used during the period of approximately 1970. There are differences among the 2520R, 2524, 2525, and 2528 movements, but these differences are not known.
The Omega 30.10T1RAPCRG features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
| 1.20 x 0.120 x 350 x 11.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
