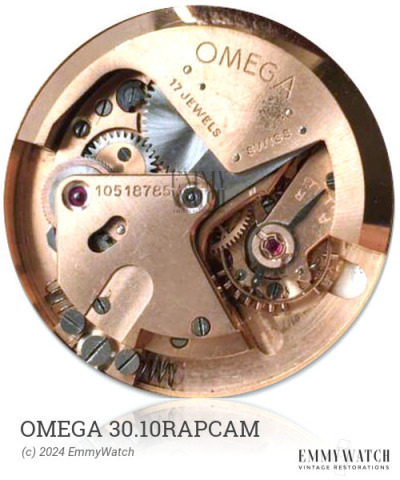

Omega 30.10RAPCAM
Ligne: 11.5'''
Jewels: 17/25
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1965-
Diameter: 26 mm
Height: 4.7 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Omega 30.10RAPCAM watch movement is an automatic movement with a sweep second function. It is also equipped with a ball-bearing rotor. This movement, along with the ETA 2524, 2525, and 2528, shares similarities, although specific differences are not known. The Omega 30.10RAPCAM movement has been in use since 1965.
The Omega 30.10RAPCAM features the following functions:
- Automatic Winding
- Ball-bearing Rotor
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
| 1.20 x 0.120 x 350 x 11.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
