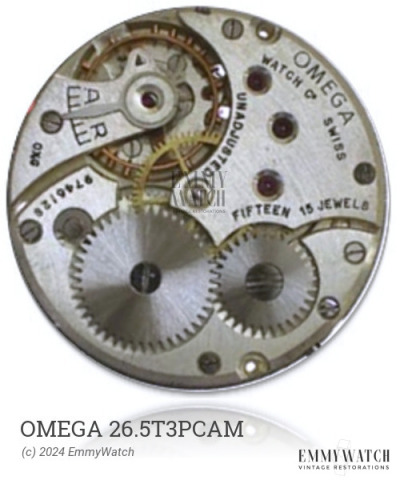

Omega 26.5T3PCAM
Ligne: 8.75'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 19.75 mm
Height: 3.55 mm
Hands: 1.25 x 0.70 / 0.20 mm
The Omega 26.5T3PCAM is a manual wind watch movement with a sub-second function. It features a bimetallic screw balance and a stem mechanism without a setting-lever spring. The bridge shapes of the Omega 26.5T3PCAM may vary from the Ebel 8.75''' model. Differences between the Omega 26.5T3PCAM and other movements such as the 158, 159, 185, 212, 220, 238, 246, 251, 259, 261, and 277 are not known. The Omega 26.5T3PCAM movement was commonly used in watches around 1925.
The Omega 26.5T3PCAM features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
