Omega 23.7T1
Ligne: 7.75 x 11.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 17.5 x 26 mm
Height: 3.3 mm
Hands: 1.30 x 0.60 / 0.20 mm

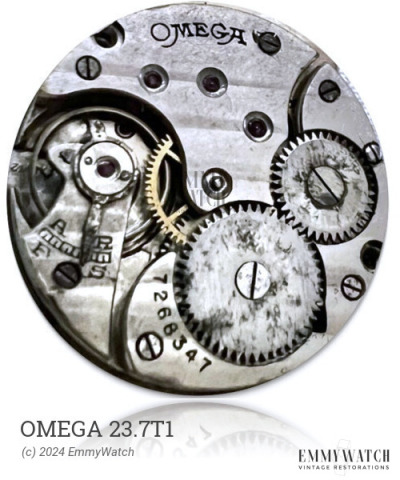

The Omega 23.7T1 watch movement is a manually-wound mechanical movement that includes a sub-second function. It shares similarities with the Fleurier 130 through 149 movements, although specific differences in bridge layouts are not available.
The Omega 23.7T1 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.100 x 360 x 9.5 mm | GR3257 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
