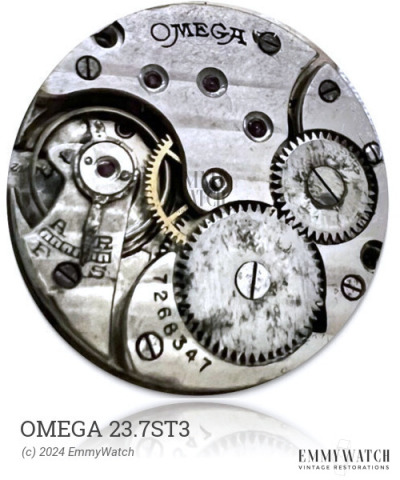

Omega 23.7ST3
Ligne: 12'''
Jewels: 1
Power Reserve: 38 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1975
Diameter: 27 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm
The Omega 23.7ST3 is a mechanical watch movement that is equipped with a pin-lever escapement. It features a unique arrangement where the train and hand gear are driven separately by the barrel. This movement offers manual wind functionality and includes a sweep second hand. It is categorized as a pin lever movement and was commonly used around the year 1975.
The Omega 23.7ST3 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
