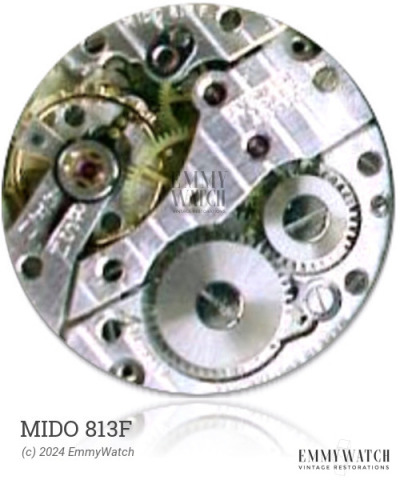

Mido 813F
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1953-1959
Size: 15.3 x 18.2 mm
Height: 3.45 mm
Hands: 1.10 x 0.60 mm
Base: Bulova 6BS
The Mido 813F watch movement is a manual wind mechanical movement that was used during the period of 1953-1959. It is closely related to the Aurore-Villeret 120, Bulova 6AH, and FHF 120 calibers, with some design details unique to the Bulova calibers. Not much is known about the specific differences between the 6BD, 6BL, and 6BS variants of this movement.
The Mido 813F features the following functions:
- Manual Winding
- Mechanical Movement
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 394 | Ordinary/None | Buy staff |
| 452 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.30 x 0.090 x 240 x 7.5 mm | GR3218 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
