Mido 700 NEW
Jewels: 17
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1895-1896
Diameter: 45.75 mm
Height: 10.1 mm
Hands: 2.46 x 1.27 / 0.30 mm

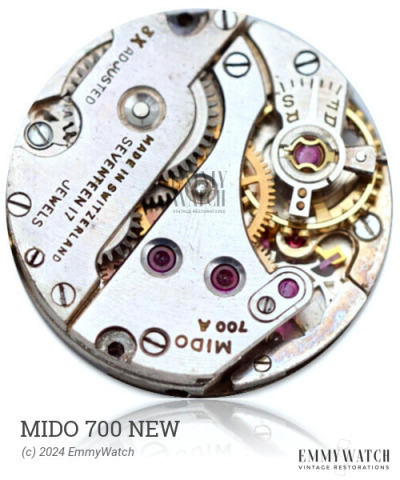

The Mido 700 NEW watch movement was produced from 1895 to 1896, with a total of 4500 units manufactured. It features an open face calibre, specifically the model 5. The movement incorporates a bimetallic screw balance and a Breguet hairspring. Notably, the ratchet is positioned under the base plate, and it utilizes a negative stem mechanism with a rocker bar. The movement includes functions such as stem winding, which can be switched using either the crown or a lever, as well as a sub-seconds function.
The Mido 700 NEW features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.92 x 0.222 x 570 x 17.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
