Mido 500A
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1975
Size: 15.3 x 18.5 mm
Height: 5.35 mm
Hands: 1.20 x 0.70 x 0.18 mm

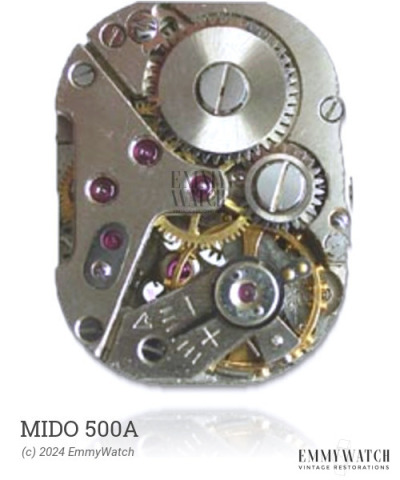

The Mido 500A watch movement is a manual wind mechanical movement. It features a sweep second hand and the ability to display the date, which can be adjusted by repeatedly pushing and pulling the crown. This movement was commonly used around the year 1975.
The Mido 500A features the following functions:
- Date: quickset by repeated pushing and pulling the crown
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 039-41 | 721/2113 | Buy part |
| CLICK | 060-10 | 425/991 | Buy part |
| CLUTCH WHEEL | 064-11 | 407/1083 | Buy part |
| CROWN WHEEL | 058-13 | 420/1296 | Buy part |
| CROWN WHEEL RING | 057-12 | 422/704 | Buy part |
| ESCAPE WHEEL, C/C (19 & 21) | 032-23 | 702/520 | Buy part |
| FOURTH WHEEL NO SECOND | 023-26 | 220/842 | Buy part |
| MAINSPRING | 002-17/CIT | 770/187 | Buy part |
| PALLET ARBOR | 72S/42P | 714/BUR 40 | Buy part |
| PALLET FORK & ARBOR | 035-29 | 710/983 | Buy part |
| RATCHET WHEEL | 059-15 | 415/1308 | Buy part |
| REGULATOR | 051-27 | 301/1449 | Buy part |
| ROLLER 180X75X33 | 82S/193R | Buy part | |
| STAFF | 043-20 | 723/1232 | Buy part |
| STEM | 065-298 | 065-298 | Buy part |
| STEM | 065-68 (use 065-298) | 065-68 | Buy part |
| THIRD WHEEL | 017-18 | 211/53 | Buy part |
| WHEEL ESCAPE S/S (17J) | 032-20 | 705/1367 | Buy part |
| WINDING PINION | 063-12 | 410/1321 | Buy part |
