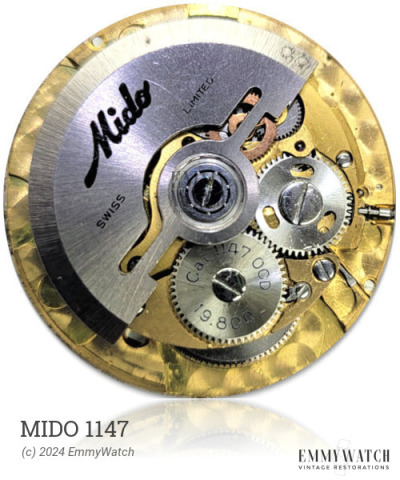

Mido 1147
Ligne: 13.25'''
Jewels: 25
Lift Angle: 49°
Power Reserve: 46 hrs
Frequency: 28800 vph
Type: Automatic
Period used: 1995-
Diameter: 30.4 mm
Height: 7.9 mm
Hands: 2.00 x 1.20 x 0.25 / 0.18 x 0.18 x 0.18 mm
Base: Valjoux 7750
The Mido 1147 watch movement is a chronometer version of the 1152 movement, which itself was an improved version of the 1154 movement. The 1164 movement is an automatic chronograph with a 60-second, 30-minute, and 12-hour subdial. It features a sub-second hand, quickset date function, and a hack feature. The 1164 movement has been used since 1995.
The Mido 1147 features the following functions:
- Automatic chronograph, 60s, 30min, 12h, cam switched
- Chronograph Movement
- Date: quickset
- Hack feature
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.117 x 620 x 12.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BRIDGE, BARREL AND TRAIN WHEEL | 7221151B106 | Buy part | |
| CANNON PINION, OFFSET | 240/1785 | 00240/ETA 7750 | Buy part |
| CENTER WHEEL, HT 3.7 | 203/163 | 00201.7750.1 | Buy part |
| MOVEMENT HOLDER (TOOL) | MH139.7750 | Buy part |
