Mido 1137O
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.1 mm
Hands: 1.50 x 0.90 x 0.21 mm

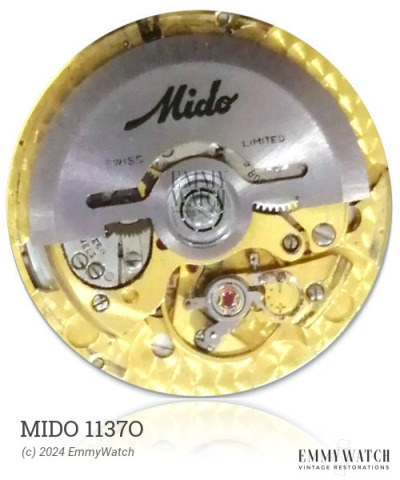

The Mido 1137O watch movement, which was in use around 1970, features an indirectly driven minute mechanism that enables a large balance and low profile. Additionally, this movement offers automatic winding and sweep seconds functionality. It is equipped with a ball-bearing rotor mechanism to ensure smooth and efficient winding.
The Mido 1137O features the following functions:
- Automatic Winding
- Ball-bearing Rotor
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.115 x 360 x 11.0 mm | GR2465X | Auto | Buy mainspring |
| 1.00 x 0.120 x 360 x 10.5 mm | GR2470X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
