Mido 1117PC
Ligne: 12.5'''
Jewels: 17/25/30
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1957-1962
Diameter: 28.5 mm
Height: 4.2 mm
Hands: 1.50 x 0.90 x 0.22 mm

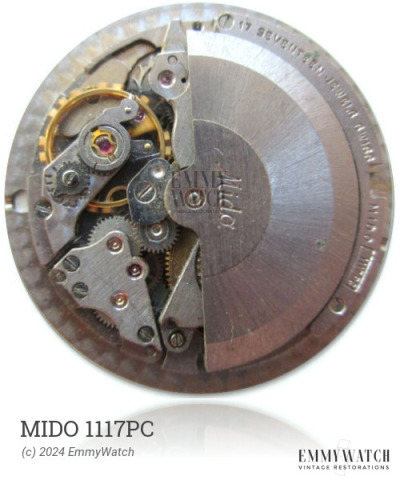

The Mido 1117PC watch movement is an automatic movement family that was produced from 1957 to 1962. It features a micro rotor and a self-winding gear that switches direction using a pinion floating between two large jewels. In the 17-jewels variations, one of these jewels is replaced by a polished steel disc. The movement also includes sweep seconds for precise timekeeping.
The Mido 1117PC features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.095 x 340 x 9.5 mm | GR2436X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
