Mido 1117PC1
Ligne: 7.75'''
Jewels: 17/21
Lift Angle: 49°
Power Reserve: 48 hrs
Frequency: 19800 vph
Type: Automatic
Period used: ~1969
Diameter: 17.2 mm
Height: 5.5 mm
Hands: 1.10 x 0.65 x 0.20 mm
The Mido 1117PC1 is an automatic watch movement with a sweep seconds function. It features a date complication that can be set by changing the time to 21:30-24h. The movement was commonly used around 1969.
The Mido 1117PC1 features the following functions:
- Automatic Winding
- Date: set by changing 21:30-24h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.05 x 0.075 x 260 x 6.5 mm | GR2524X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

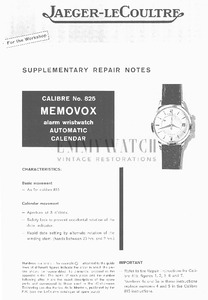

Documents
Parts Listing
